1⅝"(42mm) Tubing Us standard chain link temporary fence panels 8'height 12'width mesh 2¼"x12.5ga/2.5mm

Brand Name : LNF-temporary chain link fence

Model Number : 6' 8' height width 9.5' 10' 12'

Certification : ASTM392 ASTM396

Place of Origin : American Design China Made

MOQ : 500 liner meter

Price : 9.88$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Materials : HDG pipes

Mesh : 2"x/(50mm) 2¼"(57mm) 2⅜"(60mm) 2½"(63mm)

Design : American

Name : Chain mesh temp fence

Size : 6ft x 8ft ,6ft x 10ft ,6ft x 12ft ,6ft x 14ft ,8ft x10ft etc

Diameter : 11.5 ga ,12.5ga etc

Tubing : 1¼"(32mm) 1⅜"(35mm) 1½"(38mm) 1⅗"(40mm) 1⅝"(42mm) 1⅞"(48mm)and so on

Contact Now

1⅝"(42mm) Tubing Us standard chain link temporary fence panels 8'height 12'width mesh 2¼"x12.5ga/2.5mm

Temporary construction temporary fencing Hot galvanized wire mesh fencing 6x12 feet temporary chain link fence panels American
Temporary chain link fence is also called mobile fence net, chain link temporary fence, chain link fence panel. our temporary chain link fence is fully up to American standard, all of which are hot dip galvanized. They are popular in Australia, the United States, the United Kingdom, and African markets.
The temporary chain link fence is made of high quality soft wire and galvanized pipethe filling net and the frame tube are tightly wrapped together by the tension bars and tension bands. Done Temporary Chain Ring Fence is strong enough and durable for all site-specific requirements, either unevenground or slope site.In addition, the wire diameter of the temporary chain link fence is 11 or 9 gauge ,2" mesh, frameThe outer diameter is 1-1/4", plus hot dip galvanized surface treatment, its service life can be improved Ten years.
6ft x 12ft,6ft x 10ft,6ft x 8ft,8ft x10ft,8ft x 12ft Temporary Chain Link Fence Panel
Design
North America,Australia & New Zealand
Made
China
1) Panel Specification
Panel Size
6ft x 12ft,6ft x 10ft,6ft x 8ft,8ft x10ft,8ft x 12ft
Frame
1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional.
Chain Link Mesh Wire
9 ga/2.9mm, 10.5 ga/2.7mm, 11 ga/2.3mm, 11.5 ga/2.2mm, 12 ga/2.0mm optional
Chain Link Mesh Size
2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional.
Brace
Cross, vertical, horizontal brace with 1"/1.25’’ round or the same with frame O.D
Treatment
Pre-Galvanised pipe and panel welded,then galvanised spraying or hot dipped galvanised
Standard (Standard panels include barbed wire as extra security)
AS 1725-2010 – Chain – Link Fabric Security Fences and Gates.
AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial,Aquatic and General Use.
AS 54687-2007 – Temporary Fencing and Hoarding.
2) Steel Feet Specification
Size
750mm L x 100 W x 8.0mm Wall Thick flat base or 30" length x 18" width x 8" Height /762mm x460mm x203mm, (32mm) O.D. tube base
Treatment
Hot dipped Galvanised;
3) Clamp Specification
Size
Specially moulded 4.0mm wall thickness for additional strength,80mm,90mm,100mm hole spacing(C/C);
Treatment
Hot Dipped Galvanised;
Quality Test of 1. Temporary Chain Fence Galvanized 6 ftx10ft Temporary Fence 360° Fully welded tubular frame. All pipes are 360° fully welded rings to ensure firm Fence structure. This ensures that the temporary fence is not damaged during frequent use movement process, and will not be corroded even in hostile environments.hand craft technology manufacturing. The panels are filled with galvanized chain loops wrapped by hand on the frame tube with a tension bar and tension band in a rather tense way.
Another option is the rugged addition. Use a clip to connect two adjacent panels.In addition, the wire diameter of the temporary chain link fence is 11 or 9 gauge ,2" mesh, frameThe outer diameter is 1-1/4", plus hot dip galvanized surface treatment, its service life can be improved Ten years.
Material: mild steel
Fence size: 6ft x 12ft
Wire diameter: 2.6mm
Mesh size: 60x60mm
Pipe: 32mm O.D
Finish: hot dip galvanized
Popular size
Wire Diameter
2.0-3.5mm
Mesh Size
50x50mm,60x60mm,70x70mm,75x75mm, etc
HxW(m)
1.8X2.4, 1.8X2.5, 2.1X2.4, 2.1X2.9, 2.44X3.65, etc
Frame & Middle Pipe
25mm,32mm,42mm,48mm etc,
*Special sizes and customized designs are available.

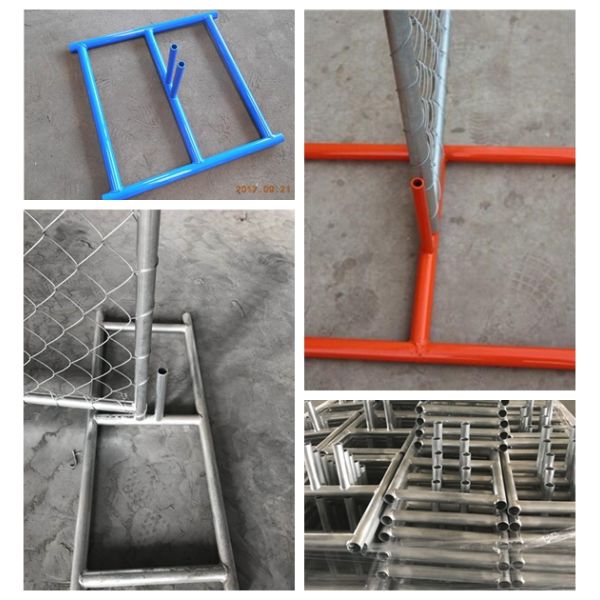

Temporary chain link fence feet are a high quality, heavy duty, long life product. size is 914x450mm. Your High quality steel temporary chain link fence will look greater and be safer.

1⅝"(42mm) Tubing Us standard chain link temporary fence panels 8'height 12'width mesh 2¼"x12.5ga/2.5mm
3. Temporary Chain Link Fence Galvanized 6ftx10ft temporary Fence Steel Clamp
1⅝"(42mm) Tubing Us standard chain link temporary fence panels 8'height 12'width mesh 2¼"x12.5ga/2.5mm
4. Temporary Chain Link Fence Galvanized 6ftx10ft temporary Fence Loading
1⅝"(42mm) Tubing Us standard chain link temporary fence panels 8'height 12'width mesh 2¼"x12.5ga/2.5mm
